100,120,140,150,170, 200 series curtain wall with exposed and hidden frames (72 wide)
section
structure
click on the page or press the keyboard ← → for page turning,enlarge the image when mouse over

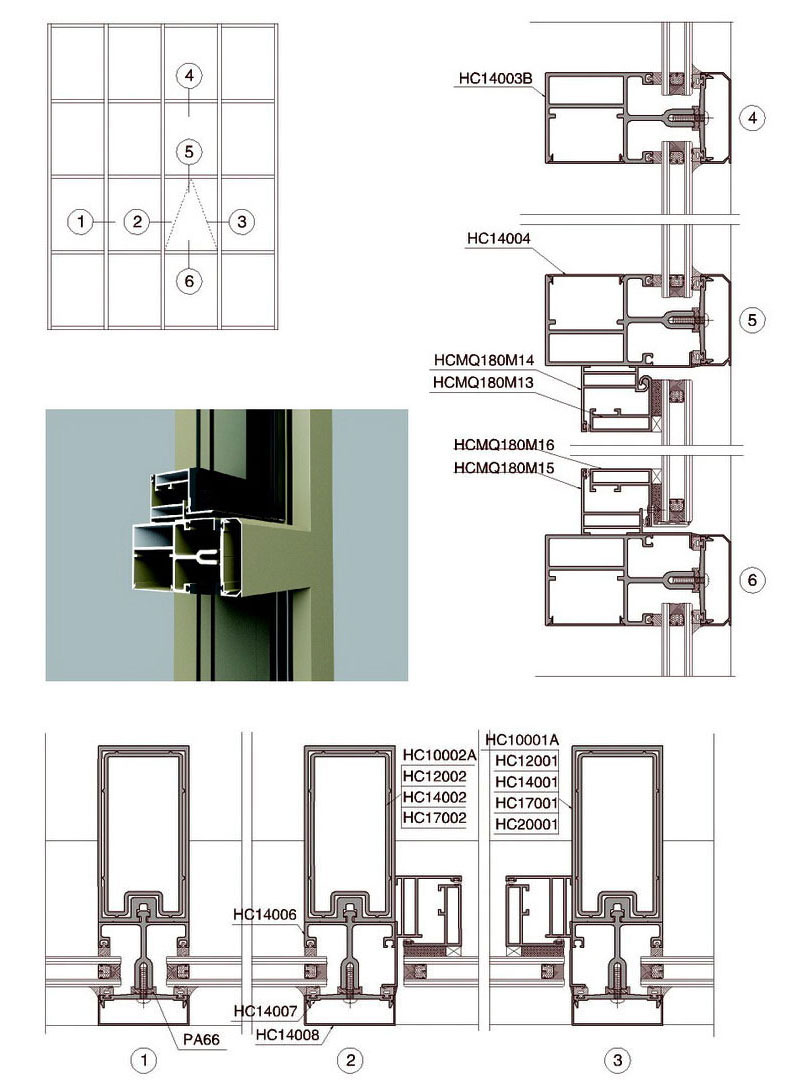

/double-glass-exposed-frame-1.jpg)

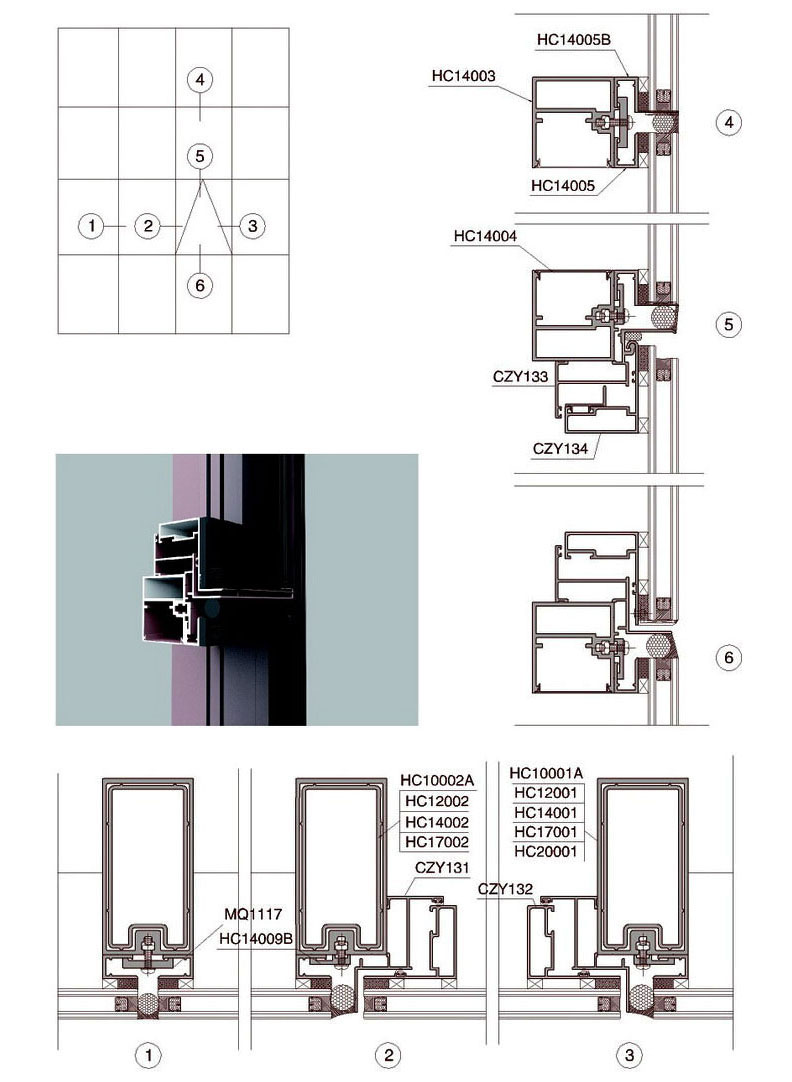

/double-glass-hidden-frame-1.jpg)

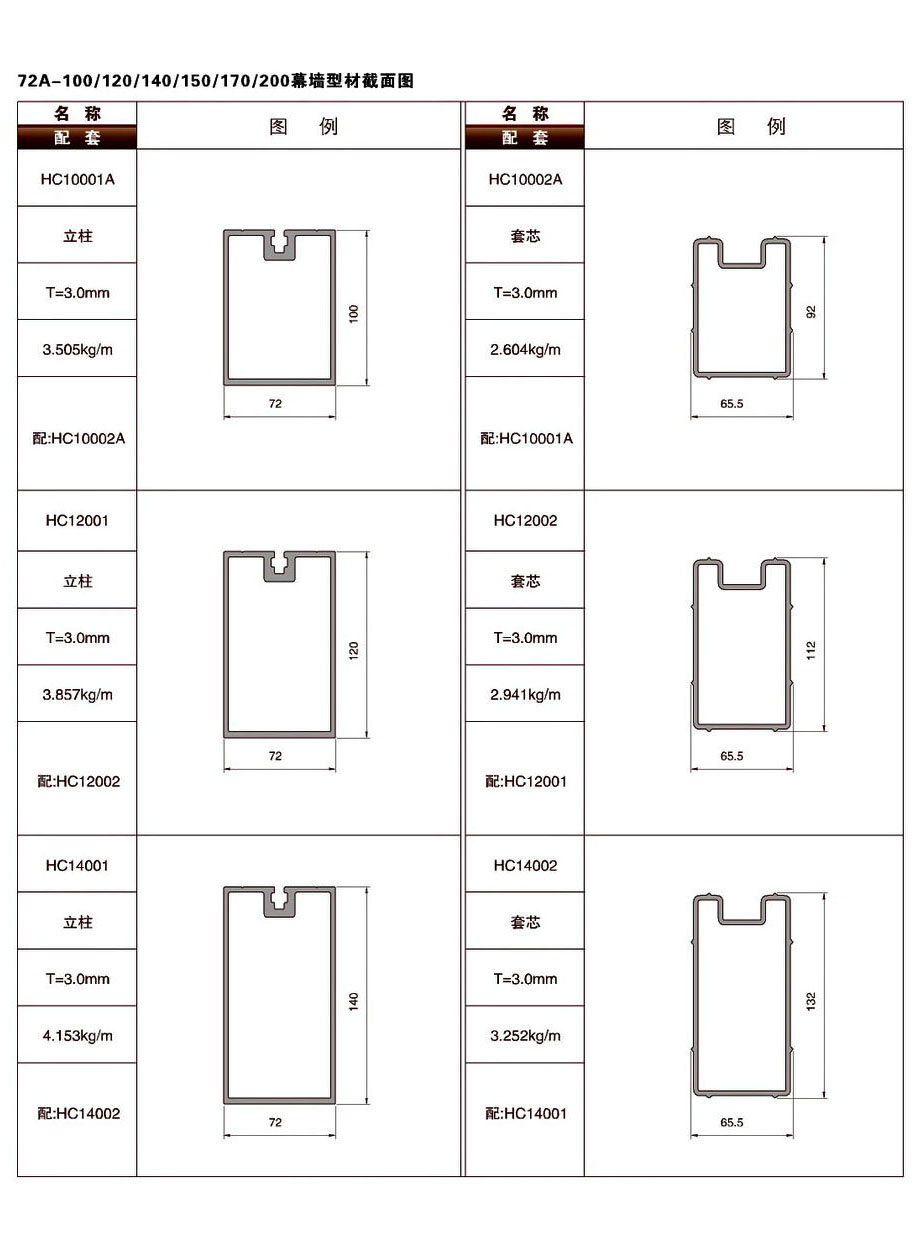

/sectional-drawing-1.jpg)

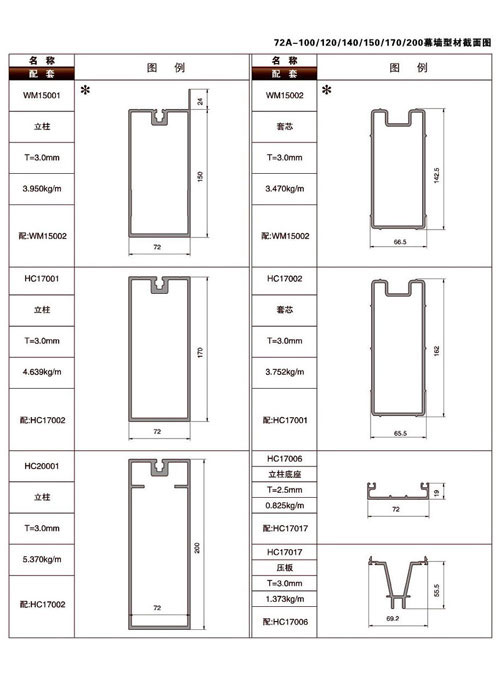

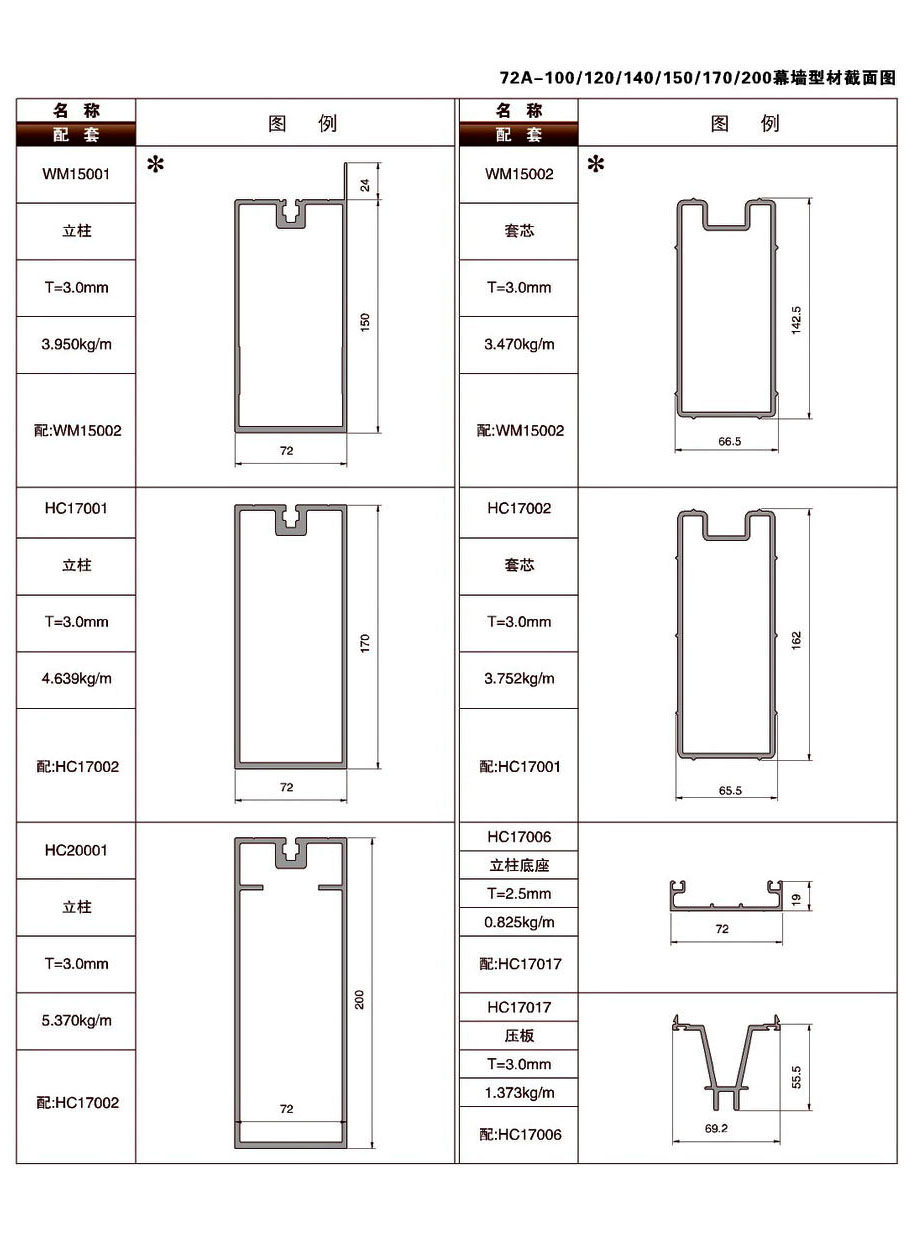

/sectional-drawing-2.jpg)
