150 series curtain wall with hidden frames (110 wide)
section
structure
click on the page or press the keyboard ← → for page turning,enlarge the image when mouse over

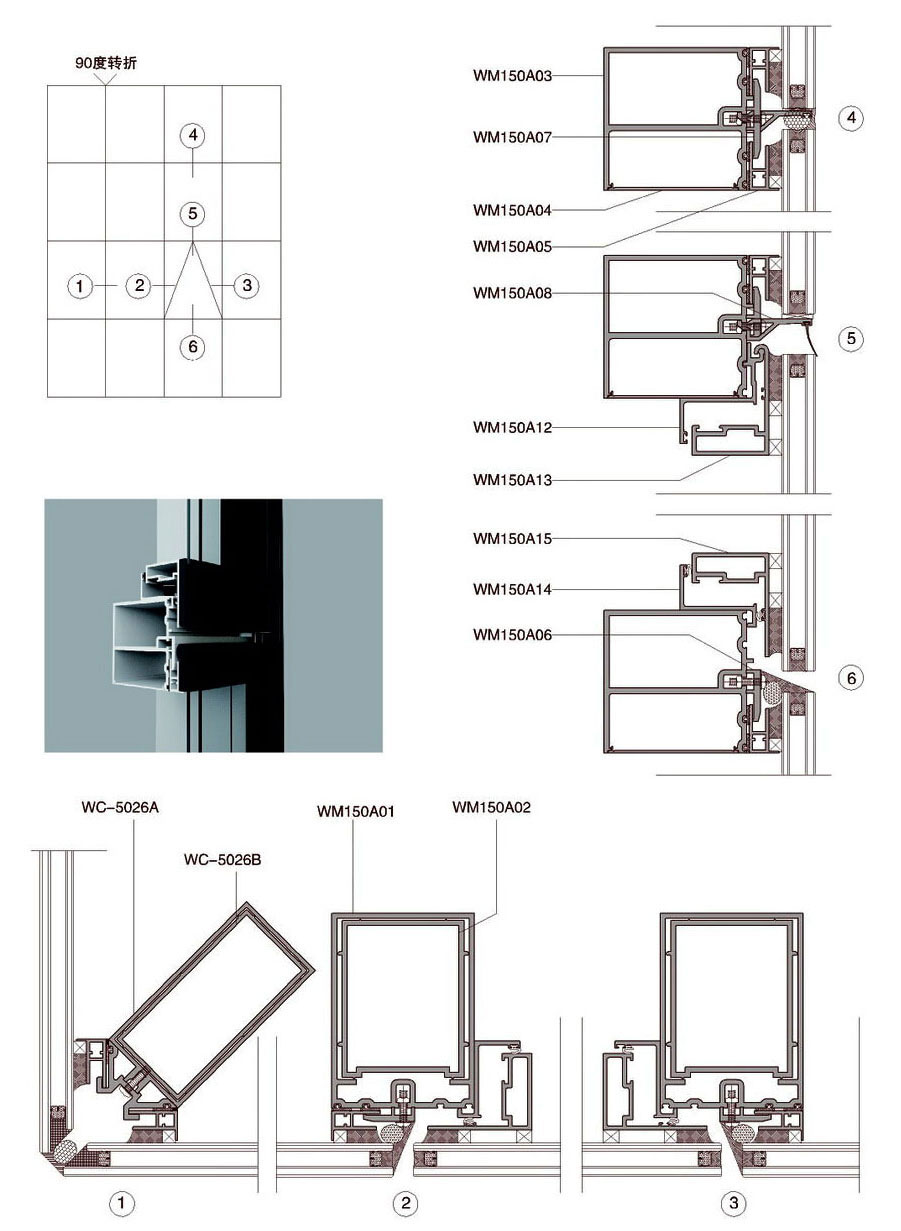

/150-double-glass-hidden-frame-1.jpg)

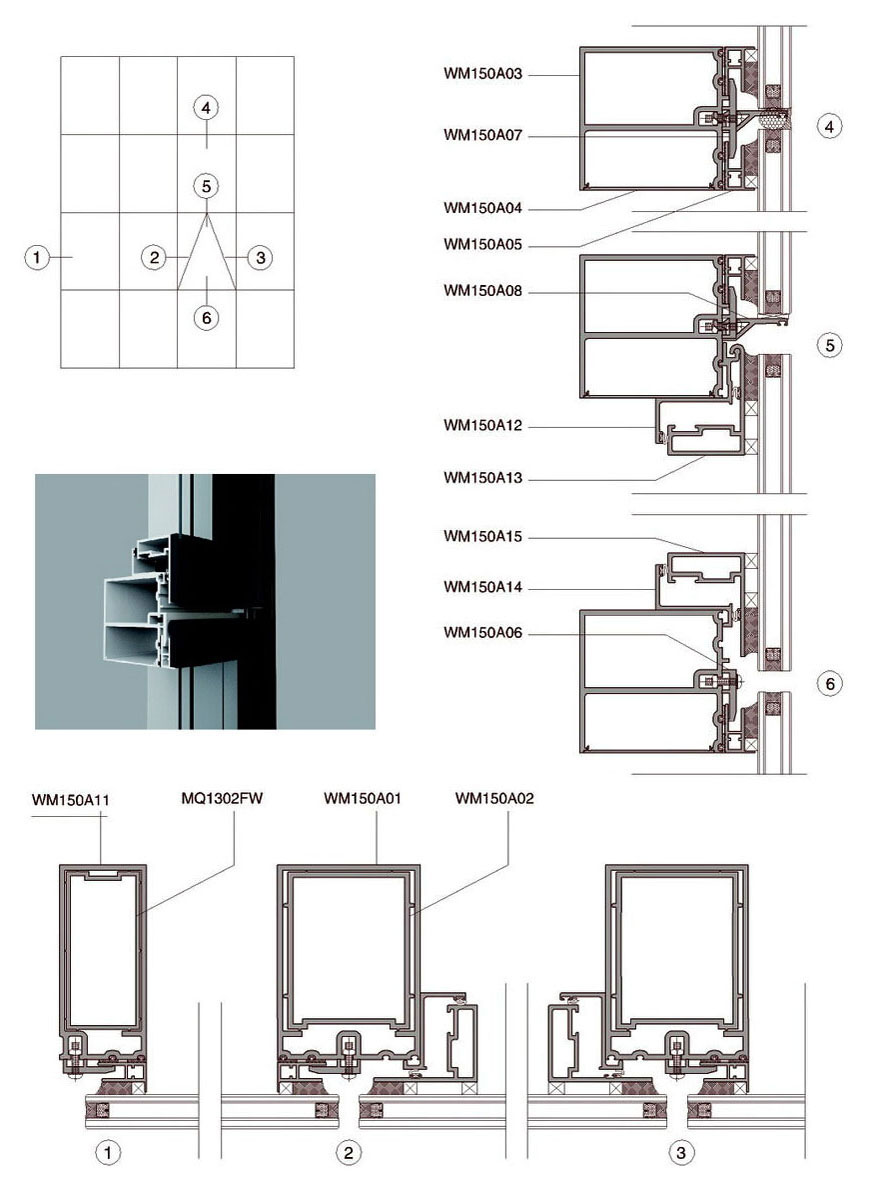

/150-double-glass-hidden-frame-6.jpg)

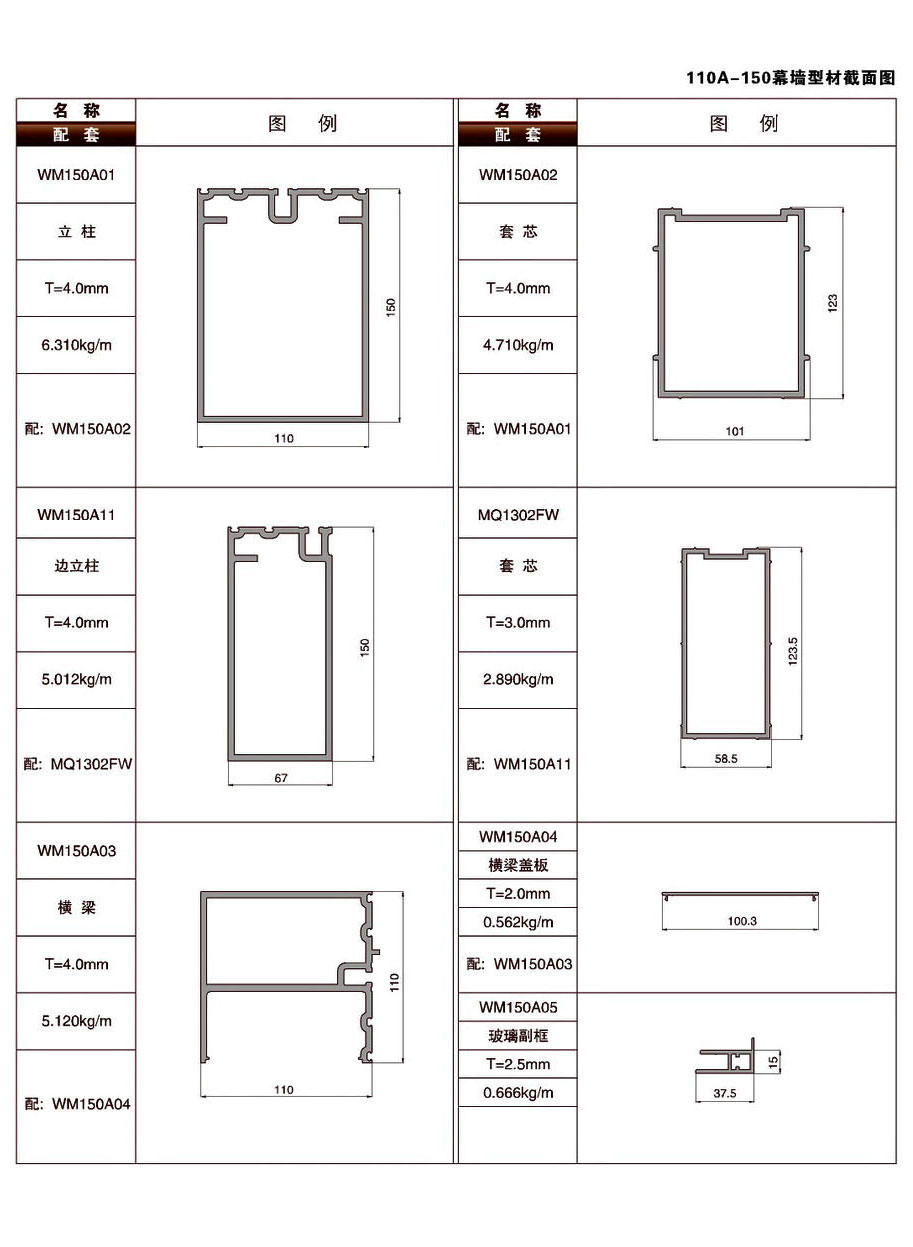

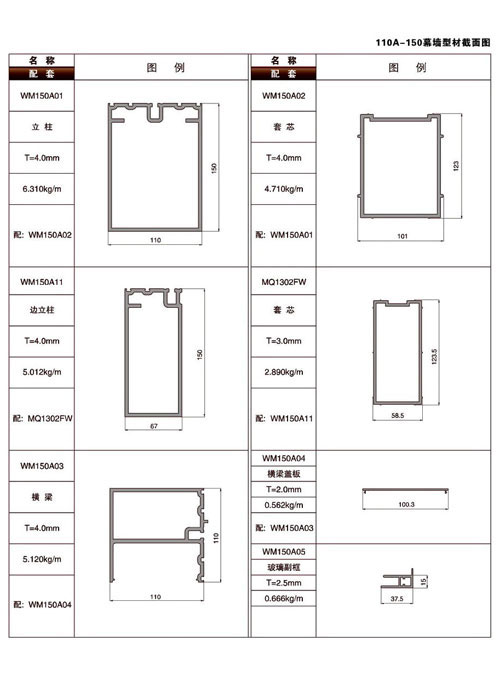

/sectional-drawing-1.jpg)

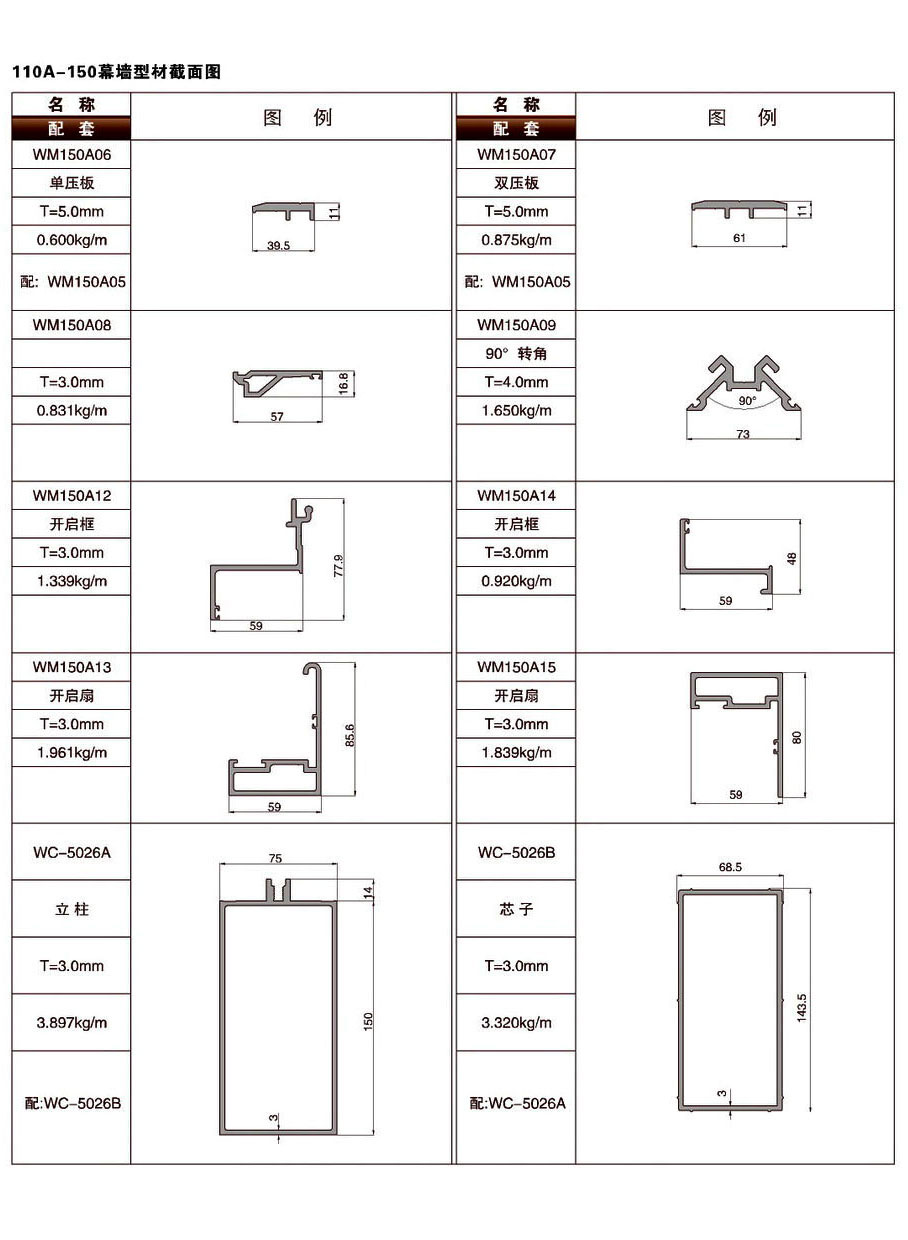

/sectional-drawing-2.jpg)
